Digital Plans - Ergatta and WaterRower Tall and Extra Tall Seat Rails

This is a digital download, not a physical seat. You get a PDF plan set to build taller seat rails for an Ergatta or WaterRower seat. Nothing ships.

Imperial (US) or Metric: choose above. You get only the set you pick.

One plan set covers both heights: Tall (6-1/2" / 165 mm rails) raises the seat 2" over stock, and Extra Tall (8" / 203 mm rails) raises it 3-1/2". You build two hardwood rails per seat. Everything else moves over from your stock seat, plus four longer M8 bolts.

What's included

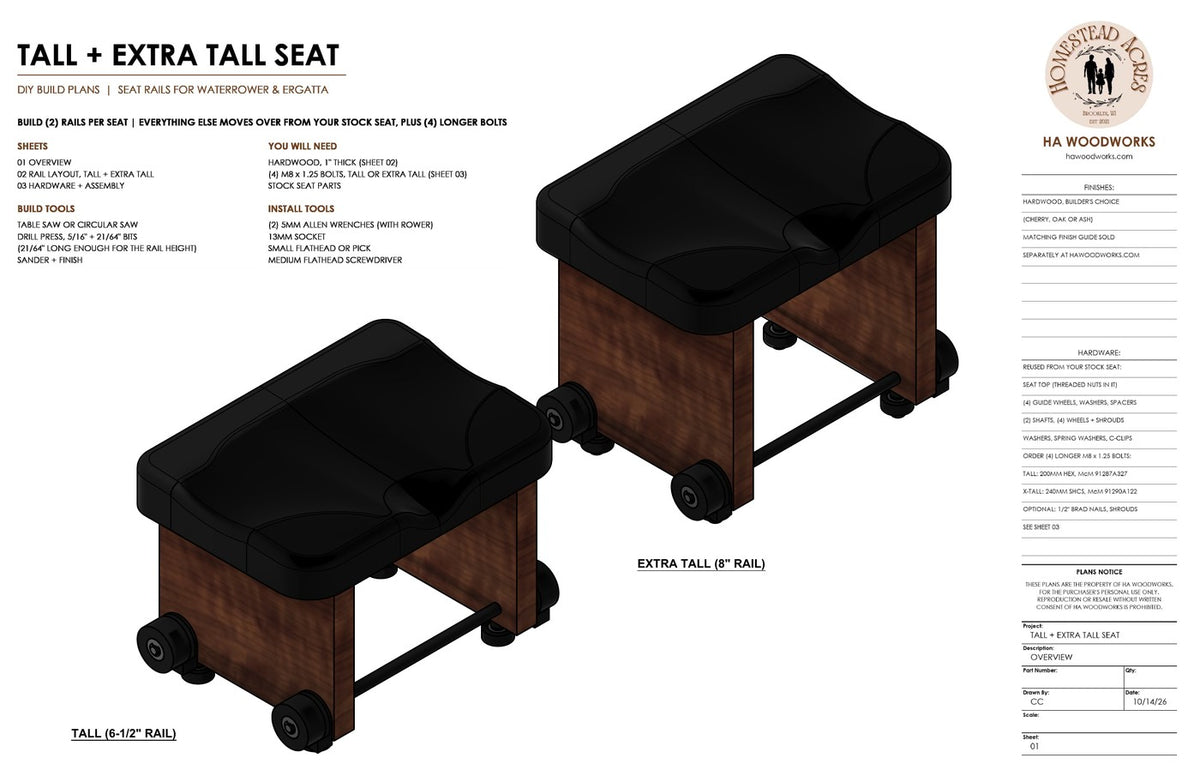

• Sheet 01: overview, tools and parts list
• Sheet 02: rail layout for both heights, full size 1:1 (print the 11 x 17 sheet at 100%, or A3 for the metric set, lay it on the board, mark the holes)
• Sheet 03: hardware checklist and step-by-step install

What you'll need

• 1" (25 mm) thick hardwood, two rails per seat: 1" x 6-1/2" x 8-3/4" (Tall) or 1" x 8" x 8-3/4" (Extra Tall)
• (4) longer M8 x 1.25 bolts: 200 mm hex for Tall (McMaster-Carr 91287A327) or 240 mm socket head for Extra Tall (McMaster-Carr 91290A122)
• A table saw or circular saw, and 5/16" and 21/64" bits (8 mm and 8.5 mm for the metric set)
• For the bolt holes: a drill press with a 21/64" bit long enough for the rail height, or a hand drill and the HA Woodworks Seat Rail Drill Guide with a 21/64" extension bit at least 6-1/2" (165 mm) long. A 6" bit covers Tall only. A 12" covers both.
• To install: (2) 5mm Allen wrenches, a 13mm socket, a small flathead or pick, and a medium flathead screwdriver

Add-ons (sold separately)

• CNC File Add-On (DXF) for the seat rails
• Seat Rail Drill Guide: STL file to print yourself, or 3D printed and shipped
• Rower Finishing Guide

License

Every plan comes with a Personal License: build it for yourself or as a gift. Selling seats built from these plans requires a Commercial License, sold separately. Please don't share, copy or resell the plans.

All sales final

Digital products are final sale, with no refunds. If your download link doesn't work or your file is damaged, email chris@hawoodworks.com within 30 days and I'll send you a working copy.
