Digital Plans - Ergatta and WaterRower Extra Wide Footboard Upgrade

Read this first: Before You Order: what else you'll need to buy, tools, and common questions

This is a digital download, not a physical footboard. You get a PDF plan set to build your own Extra Wide footboard for an Ergatta or WaterRower. Nothing ships.

The Extra Wide footboard moves your feet about 2-3" higher and gives you a 7" wider stance than stock. It's the same design I've built and sold by hand.

What's included

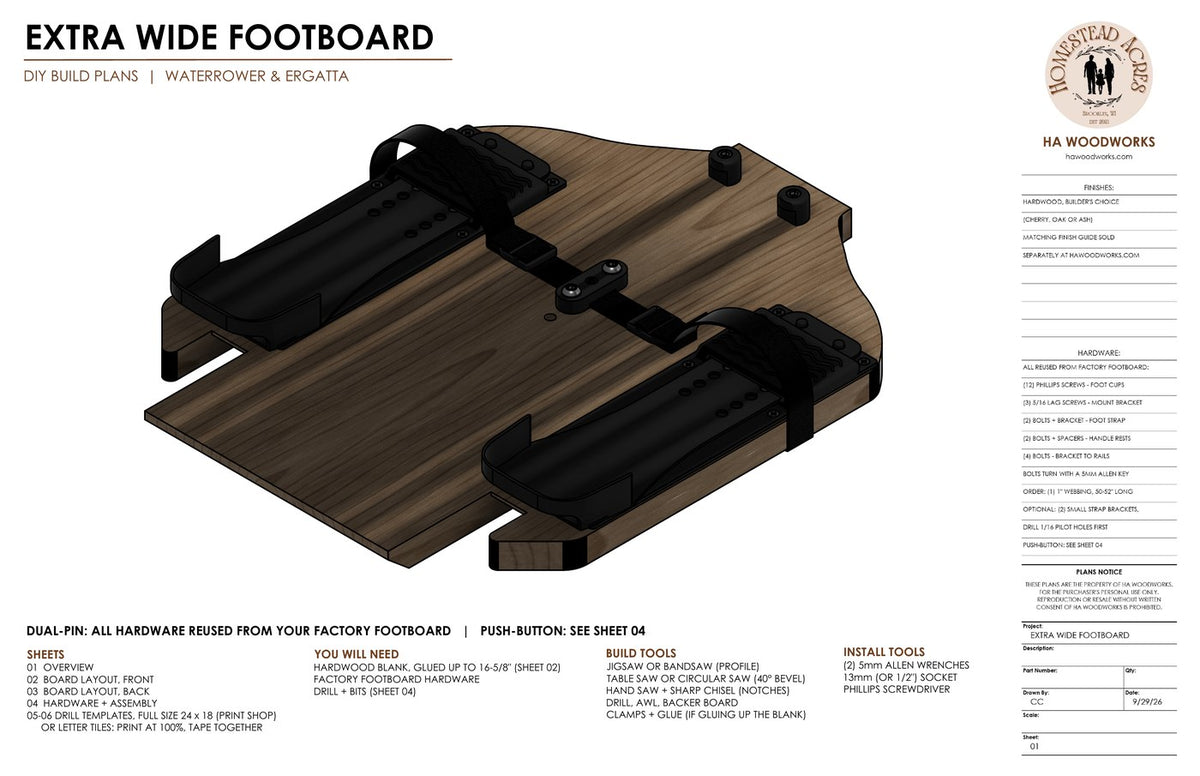

• 6-sheet plan set (11 x 17): overview, front and back board layouts at 1:2 scale, hardware checklist, step-by-step install, and bevel detail sections
• Full-size 1:1 drill templates for the front and back faces (24 x 18 in sheets, print at any print shop)
• Letter-size tiled templates (12 pages) you can print at home and tape together

Dual-pin or push-button?

Dual-pin: every piece of hardware is reused from your factory footboard.

Push-button: the push-button foot plates sit at a fixed width, so you convert to dual-pin to get the wider stance. You'll need:

• From WaterRower: WRPP1720 dual pin coverplate set, WRPP1700 dual pin footpad set, WRPP366 strap assembly
• From McMaster-Carr: (2) M8 x 50 mm button head bolts (part 91239A448)
• The HA Woodworks rear strap mount: order the STL file and 3D print your own, or order a printed one from us ($25, shipped)

Not sure which you have? See the identification photo.

What you'll need

• A 1" thick hardwood blank (cherry, oak or ash)
• A saw for the curved profile, a hand saw and chisel for the notches, and a saw that tilts for the bevels
• A drill and the bits listed in the plans
• To install: (2) 5mm Allen wrenches, a 13mm (or 1/2") socket, and a Phillips screwdriver

Add-ons (sold separately)

• Rower Finishing Guide: step-by-step stain and finish recipes to match Ergatta and WaterRower finishes. $10 off when you buy it with the plans, applied automatically in your cart.
• Rear Strap Mount, 3D printed: for push-button conversions, printed and shipped to you
• Rear Strap Mount STL file: print the strap mount yourself

License

Every plan comes with a Personal License: build it for yourself or as a gift. Selling footboards built from these plans requires a Commercial License, sold separately. Please don't share, copy or resell the plans.

All sales final

Digital products are final sale, with no refunds. If your download link doesn't work or your file is damaged, email chris@hawoodworks.com within 30 days and I'll send you a working copy.
