WR/Ergatta Rear Strap Mount for Push-Button Conversions - STL File

This is a digital download, not a printed part. You get the STL file to 3D print the HA Woodworks rear strap mount yourself. No printer? Order a printed one from us ($25, shipped).

What it's for

If your Ergatta or WaterRower has the push-button footboard, you convert to dual-pin to use the Wide or Extra Wide footboard. This strap mount goes on the back of the new footboard with (2) M8 x 50 mm button head bolts (McMaster-Carr 91239A448) and the nuts from the WaterRower WRPP366 strap assembly. The install steps are in the footboard plans.

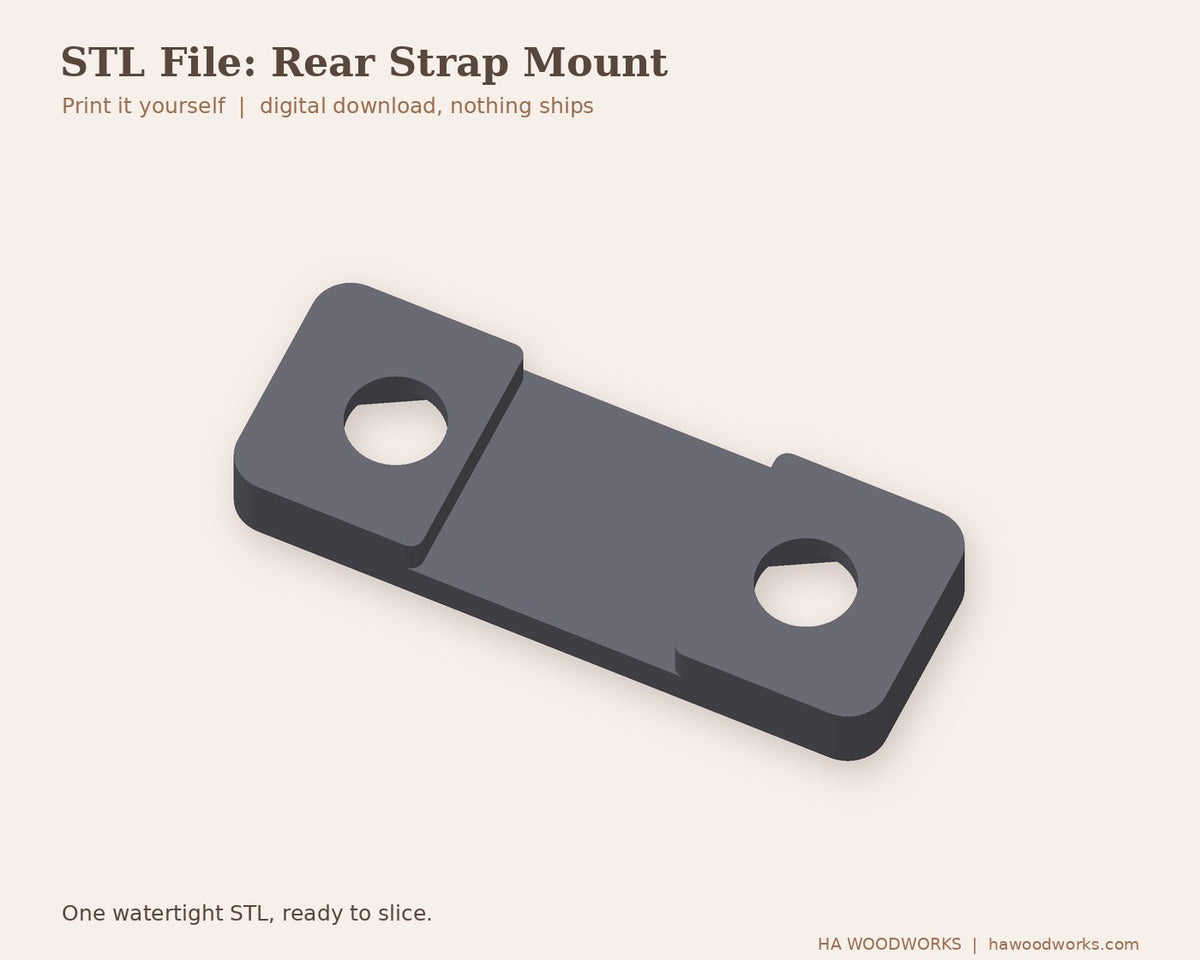

The file

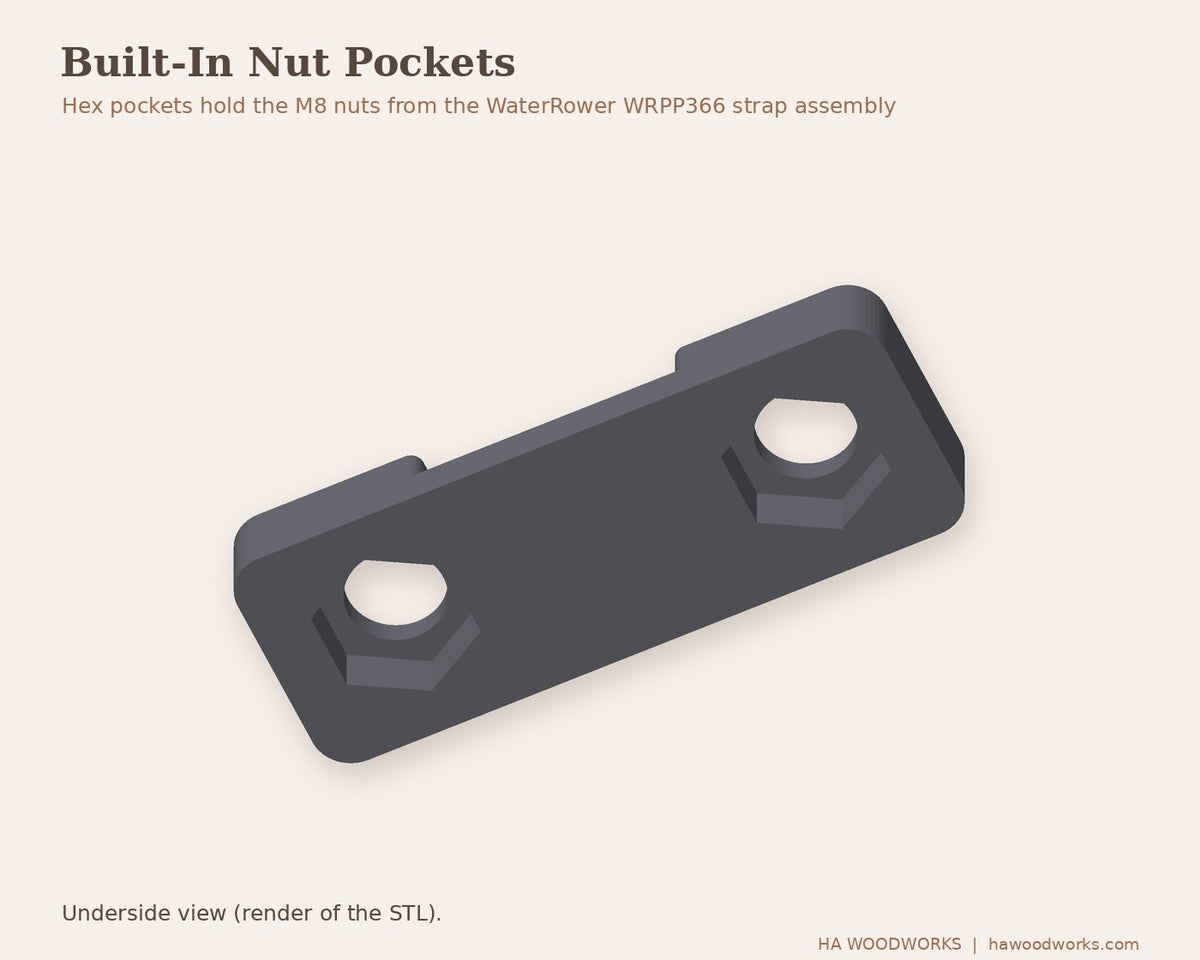

• One STL file, watertight and ready to slice, with hex pockets for the M8 nuts built in

Print settings we use

Sliced in Cura for a Creality Ender 3 V2 with a 0.4 mm nozzle:

• Material: PLA (ours are black), 215°C nozzle, 60°C bed
• Layer height: 0.2 mm
• Walls: 1.6 mm (4 lines)
• Top and bottom: 3 mm
• Infill: 50%
• Supports: on (70° overhang angle)
• Adhesion: skirt
• Orientation: flat on the full base, nut pockets facing down
• About 10 g of filament and about 80 minutes per part

License

Personal use only: print it for your own rower. Please don't share, sell or redistribute the file or printed parts.

All sales final

Digital products are final sale, with no refunds. If your download link doesn't work or your file is damaged, email chris@hawoodworks.com within 30 days and I'll send you a working copy.
